Equipment Supports

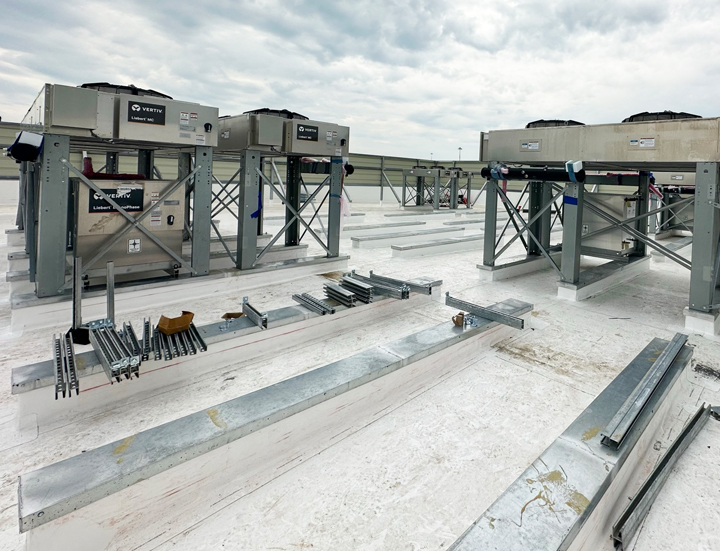

Altra Custom Manufacturing Inc. equipment supports provide a secure, leakproof mounting solution for rooftop equipment without penetrating the roof deck. This design helps maintain the integrity of the roofing system while supporting units such as fans, ductwork, and piping systems.

Constructed from heavy-gauge galvanized steel, these supports feature continuously welded seams and internal reinforcements for maximum strength and durability. They are designed to span roof joists effectively and can be customized to meet specific project requirements.

Available in multiple configurations and styles, these supports can be adapted to various roofing systems. Additional options such as insulation, seismic restraints, and reinforced load points enhance performance and safety, making them a reliable choice for modern rooftop installations.

Pate equipment supports do not penetrate the roof deck but provide reliable, leakproof mounting for condensing units, fan supports, duct and pipe supports, and other equipment. Standard and Engineered-To-Order (custom) sizes available to span roof joists and accommodate equipment needs.

Constructed of heavy-gauge galvanized steel, with continuously welded and mitered corner seams.
Internally reinforced and with integral base plate for added strength.
Pressure-treated wood nailers with galvanized steel counterflashing.
Styles and heights to match roof deck and equipment requirements.
Load modeling and structural calculations available.
Wide range of in-stock items available.

Model #	Description
ES-2	Straight-sided – most common – lightweight fill or tapered insulation
ES-1	Canted design – 45-degree bend at base – single ply or rubber/PVC roof
ES-5	Raised-cant design – 45-degree bend and elevated base – insulated roof deck

Options:

Pitched
Nailer Jackets – Seismic And Wind Restraint
Nailer Jackets – Reinforced Load Bearing Points
Insulated
